FROM MANUAL SHUTTLES, TO SEMI-AUTOMATIC ROTARIES TO FULLY AUTOMATIC ROTARIES, CAROUSELS & INLINE PACKAGING MACHINES
THE perfect fit for your maket!
Starview’s Blister Packaging Machines are available with the largest selection of standard sizes, makes and models in the industry. From manual to semi-automatic to fully automatic machines that includes our shuttles, rotaries, carousels and in-line blister packaging lineup. Standard sizes and model comparisons can be seen below.
Starview continues to update, and innovate to bring flexible, easy to operate, high value to investment machine options to the blister packaging market for over 30 years. Contact us to see how we can help you take advantage of our experience.
Blister Catalog (pdf) series comparison
- A wide range of standard and custom automation features available to match customer requirements.
- A heavy-duty industrial unit that can produce packages that look like they were produced on a high productionmachine.
- ANSI Class 4 machine safety for operator protection.
- Automatic blister feeder, card feeder & finished package unloader provide reduced labor costs.
- Color touch screen HMI for the ultimate in operator convenience and accessibility. Includes storage for 99 databases and on-screen data tracking.
- A Starview exclusive remote access via standard Ethernet hardwire or optional Wi-Fi router gives management access to real-time process information from the machine.
- AC Variable frequency precision cam index rotary table drive for smooth table operation and position repeatability.
- Uses quick-change cost effective multi-ply hardwood or durable aluminum tooling.
- A Starview exclusive remote access via standard Ethernet hardwire or optional Wi-Fi router gives management access to real-time process information from the machine.
- AC Variable frequency precision cam index rotary table drive for smooth table operation and position repeatability.
- Uses quick-change cost effective multi-ply hardwood or durable aluminum tooling.
- Industry leading design, construction, features and customer support.
More than one possibility:
Focus on sustainability

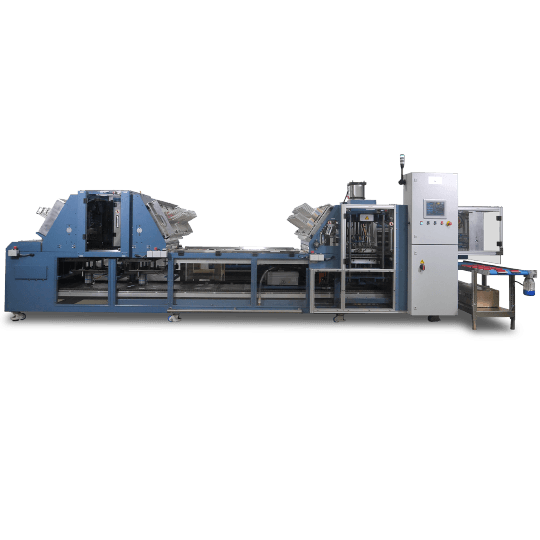

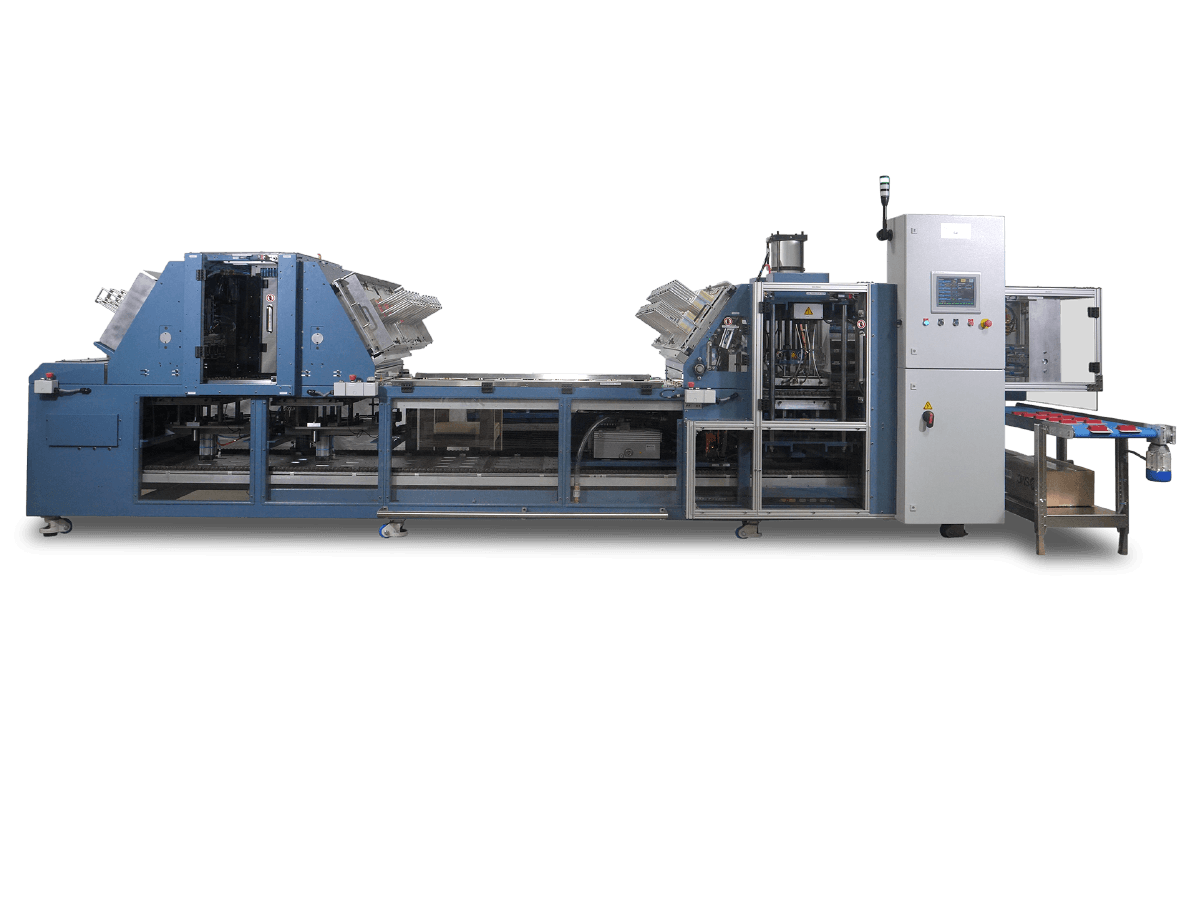

Starview’s Fully Automatic Blister Packaging Machine FAB with APB Series with auxiliary All Paper Blister feeder option
Environmentally friendly packaging materials just got economically processed with Starview's Ecological Solution for CPG Carded Packaging!
Starview’s FAB APB Series are fully automated rotary type blister sealing machines are ideal for high volume or JIT production. Given the proper conditions certain models of these machines are capable of up to 20 cycles per minute in production. The All-Paper Blister is part of Rohrer's ezCombo program
FAB APB series detailsHigh volume solution

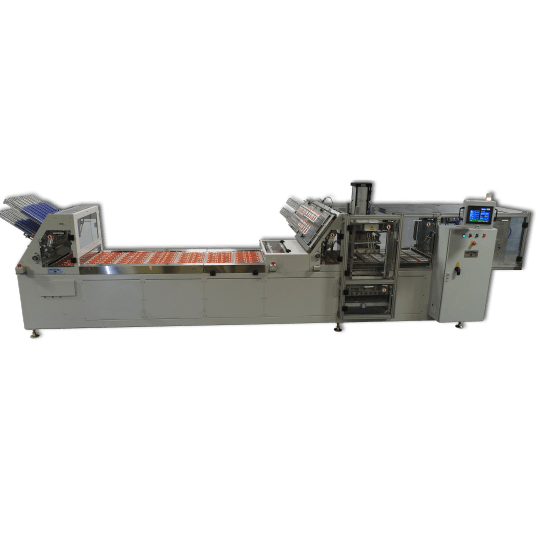

Starview’s High Volume Fully Automatic Inline Blister Sealing Machine
CBS series Automated Inline Conveyor type blister sealing machines are ideal for high volume or JIT production. Given the proper conditions these machines are capable of up to 20 cycles per minute in production. Starview’s automated inline conveyor blister sealing machines are built with the capability to feed blister(s), blister card(s) and discharge finished packages when proper tooling is installed.
CBS series details
SB SSB series
manual shuttle |
MS2 series
manual shuttle |
||
| Size type of production: | Small to medium | Small to medium | |
| Nominal sealing area: | 10” x 12” / 14” x 18” | 18” x 24“ / 24” x 30“ / 24” x 36“ | |
| Max. blister depth: | 3.25” | 3.25” | |
| Prod. loading operation: | Manual | Manual 2 stations | |
| Open loading stations: | 1 or 2 | 2 | |
| # of sealing fixtures: | 1 or 2 | 2 | |
| Blister feeder: | N/A | N/A | |
| Card feeder(s): | N/A | N/A | |
| Finished package unloader: | N/A | N/A |
RB series
economical Rotary |
ERB series
semi-Automatic Rotary |
||
| Size type of production: | Medium | Medium to large | |
| Nominal sealing area: | 14” x 18” / 12” x 14“ | 14” x 18” / 18” x 24“ | |
| Max. blister depth: | 3.25” | 3.25” | |
| Prod. loading operation: | Semi-automatic | Semi-automatic | |
| Open loading stations: | 3 or 5 | 5 or 7 | |
| # of sealing fixtures: | 4 or 6 | 6 or 8 | |
| Blister feeder: | N/A | N/A | |
| Card feeder(s): | N/A | Optional | |
| Finished package unloader: | N/A | Optional |
fab4 series
Fully Automatic Rotary |
 fab6 / fab8 Series
Fully Automatic Rotary |
FAB APB series
Fully Automatic Rotary
with auxiliary all paper feeder option |
|
| Size type of production: | High volume or JIT | High volume or JIT | High volume or JIT |
| Nominal sealing area: | 10” x 12” / 12” x 16” | 14” x 18” / 18” x 24“ | 14” x 18” / 18” x 24“ |
| Max. blister depth: | 3.25” | 3.5” | 3.5” |
| Prod. loading operation: | Fully automatic | Fully automatic | Fully automatic |
| # of sealing fixtures: | 4 | 6 or 8 | 4, 6 or 8 |
| Open loading stations: | 1 | 2, 3 or 4 | 3 or 4 |
| Blister feeder: | Standard | Standard | Standard |
| Card feeder(s): | Standard | Standard | Standard |
| Finished package unloader: | Standard | Standard | Standard |
BSC Series
Fully Automatic Carousel
|
cbs Series
Fully Automatic
inline |
||
| Size type of production: | Hight volume | Hight volume | |
| Nominal sealing area: | 14” x 18” / 18” x 24“ | 14” x 28” | |
| Max. blister depth: | 3.25” | 3.25” | |
| Prod. loading operation: | Fully-automatic | Fully-automatic | |
| # of sealing fixtures: | 16 | 16 | |
| Open loading stations: | 9 | 9 | |
| Blister feeder: | Standard | Standard | |
| Card feeder(s): | Standard | Standard | |
| Finished package unloader: | Standard | Standard |
