Automatic

Skin Packaging Machines

ASP & ASP/IR Series

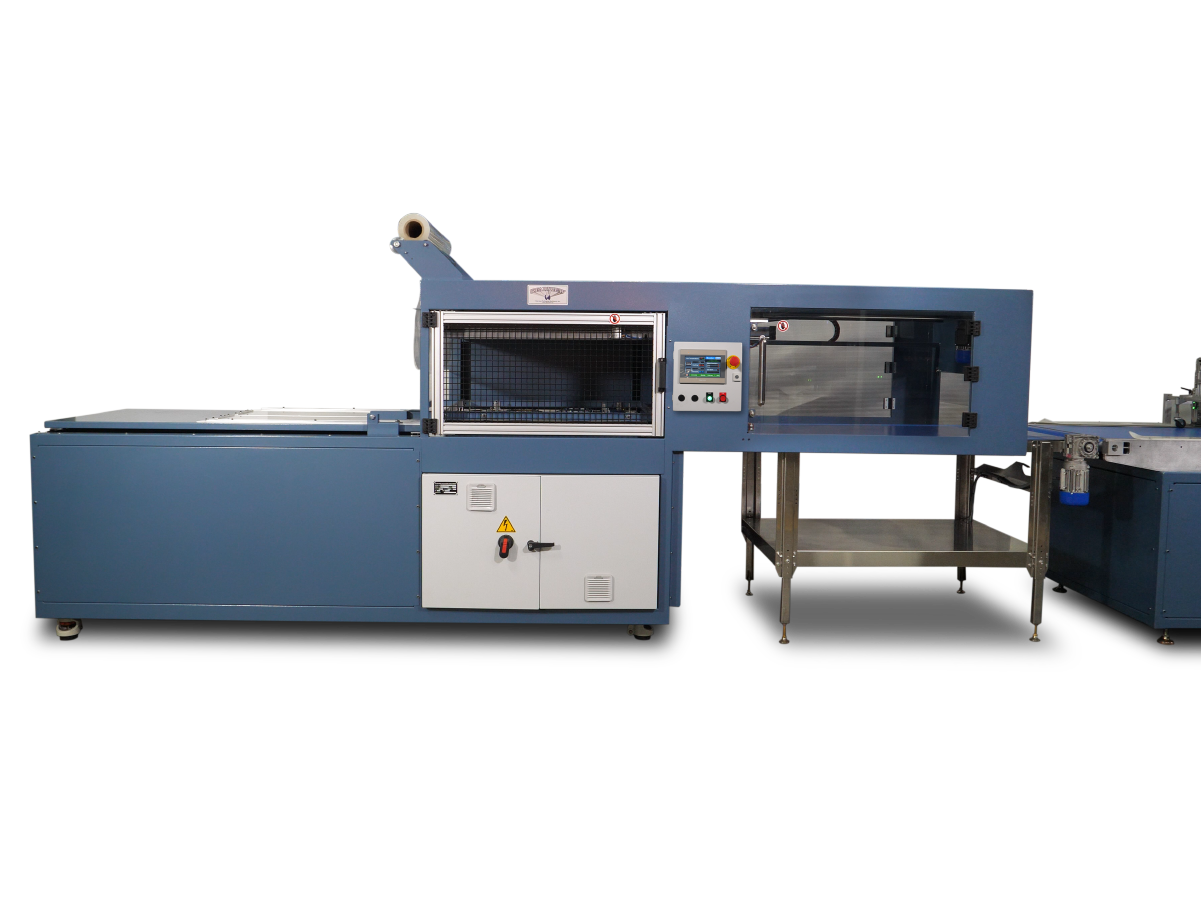

AUTOMATIC Skin Packaging Machines

Starview’s ASP & ASP/IR Series machines feature in-feed conveyors with traveling template loaders and optional automatic finished skin board unloading. Standard machines are offered for skin board sizes of 18 x 24 inches through 36 x 48 inches.

These skin packaging machines can produce the typical retail carded packages on SBS skin board or industrial packages on corrugated pads using Surlyn and Polyethylene skin films.

ASP & ASP/IRDetails:

Built for your market:

ASP & ASP/IR Series

Why a perfect fit?

The ASP Series skin packaging machines are designed for low to medium volume applications. ASP machines incorporate a stationary heating system with instant on/off heaters. ASP skin packaging machines have PLC timer control for precision repeatability and an accurate turbine regulator. An automatic in-feed table with traveling template loader, out-feed table and impulse type hot wire cut-off are all standard. A multi-stage vacuum system for complex parts is included as a part of the HMI. A film temperature sensor that overrides the PLC heat timer for consistent film heating is standard.

Starview’s ASP Series skin packaging machines can be equipped with an optional automatic overhead out-feed system. The PLC can be used to advance an optional conveyor to remove finished skin packages from the work area.

more information (pdf) series comparison

A wide range of standard and custom automation features available to match customer requirements.
The only pendant mounted color touch screen HMI in the industry for the ultimate in operator convenience and accessibility.
A Starview exclusive remote access via standard Ethernet hardwire or optional Wi-Fi router gives management access to process information from the machine.
Fully adjustable vacuum motor speed and oven power using an on-screen touch bar graph to provide precise film temperature and vacuum control.
Machine operating recipe storage including all timer and bar graph settings with memory for up to 99 different recipes for operator recall of proven set-ups for complex products.
Automatic template infeed and optional automatic outfeed designed to shorten loading and unloading times and reduce labor input.
Industry leading design, construction, features and customer support.
