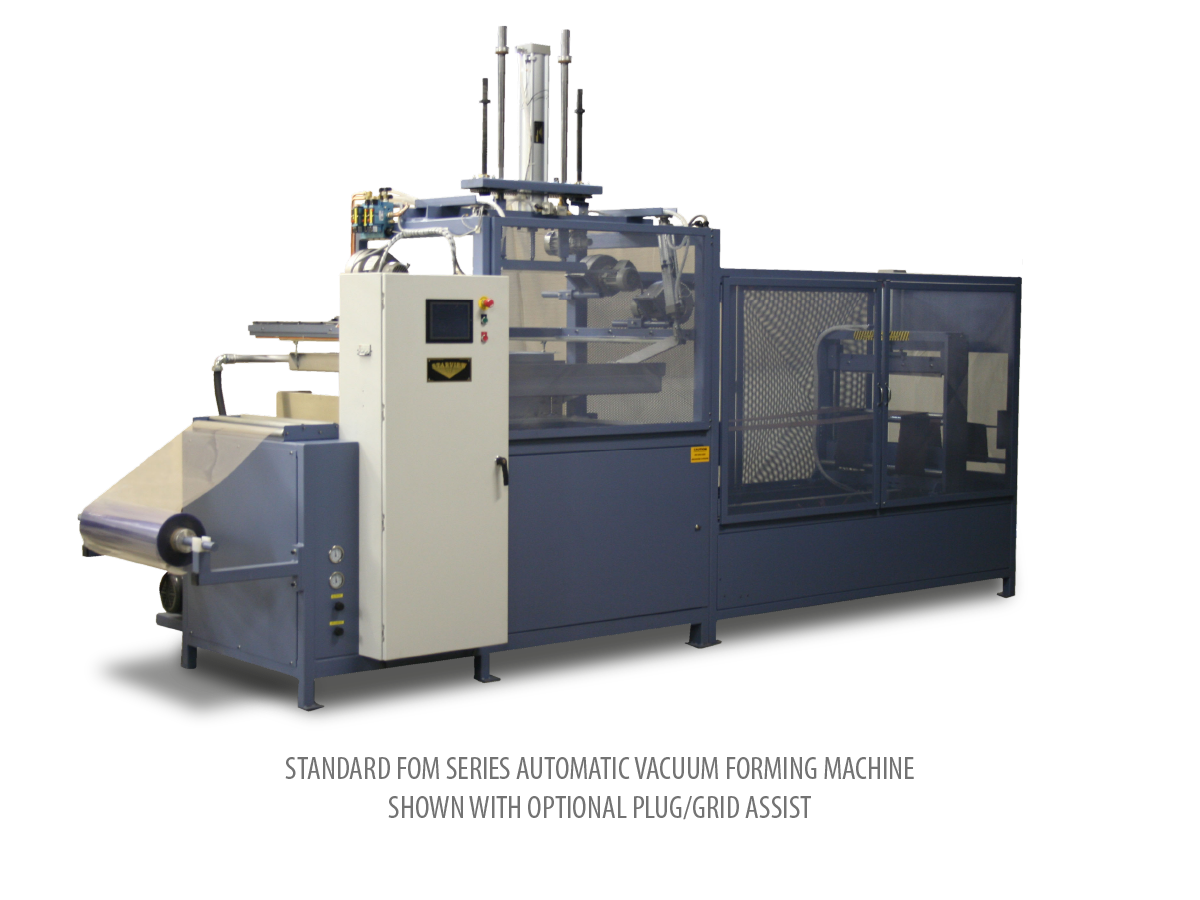

Starview's FOM Series vacuum forming machines are designed for medium production runs. Standard forming areas of 20 x 30 inches, 25 x 30 inches, 25 x 40 inches and 30 x 40 inches are offered.
Machines are roll fed with the full formed sheets guillotined at the end of the cycle. Plug/grid assist and male/female mold capability are available as options. FOM Series machines will run most thermoforming grade films.
FOM Details:
Built for your market:
FOM Series
Why a perfect fit?
Starview’s FOM Series automatic vacuum formers are designed for medium run thermoforming applications. The FOM
Series machines will form most common materials such as PVC, PET, Polystyrene, ABS, etc. The FOM Series is offered with
standard form areas of 20” x 30”, 25” x 30”, 25” x 40” and 30” x 40” as well as custom sizes to meet customer requirements.
These machines include an adjustable air cushion to maintain plastic flatness and prevent sagging before the mold reaches
the end of its upper travel. Optional features such as Plug/grid assist, Male/female mold capability and inline preheat
systems increase the versatility of this machine.
For units with increased production capacity and inline die cutting please consider Starview’s
IF Series or
IPV Series thermoforming machines.
A wide range of standard and custom automation features available to match customer requirements.
ANSI Class 4 machine safety for operator protection.
Color touch screen HMI for the ultimate in operator convenience and accessibility. Includes storage for 99 databases and on-screen data tracking.
A Starview exclusive remote access via standard Ethernet hardwire or optional Wi-Fi router gives management access to real-time process information from the machine.
Standard cooling blowers and optional plug/grid assist and water-cooled mold plate provide increased machine versatility and productivity
Formed sheets advanced out of the forming area and guillotined off automatically freeing the machine operator for a secondary die cutting operation.
Industry leading design, construction, features and customer support.
