Fully Automatic Inline

Pressure Formers

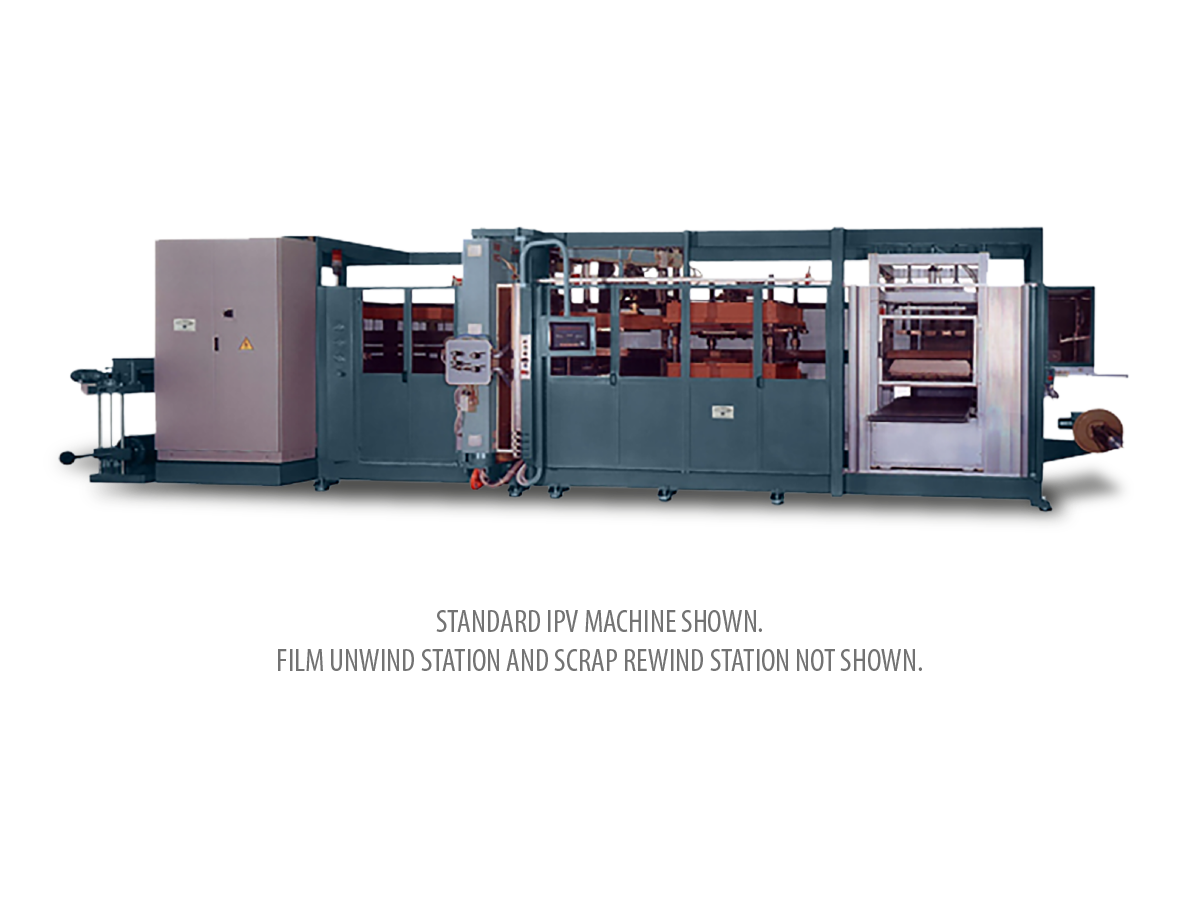

IPV Inline Pressure Formers

IPV Series

Fully Automatic Inline Pressure Formers

Starview's IPV Series vacuum forming machines are designed for high speed production runs and where maximum forming definition is required. Machines with a standard forming area of 25” x 25” are offered.

Machines are roll fed with inline die cutting, finished part stacking and scrap rewind standard. IPV Series machines will run most thermoforming grade films.

IPV Details:

Built for your market:

IPV Series

Why a perfect fit?

Starview’s IPV Series pressure formers are high-speed, servo-driven and quick change over machines designed for large-scale OEM and custom former applications. Designed with the user in mind these machines provide total process control and maximum flexibility.

The IPV Series use pressure and/or vacuum to produce the highest possible quality finished parts. They will process all thermoforming grade materials including PVC, HIPS, PET, PP, HDPE, OPS, etc. The IPV Series is offered in a standard form area of 25” x 25”.

For machines to produce larger formed parts or higher production rates request information on IPV Series units with larger forming areas.

more information (pdf) series comparison
the Starview advantage
  • A wide range of standard and custom automation features available to match customer requirements.
  • ANSI Class 4 machine safety for operator protection.
  • Color touch screen HMI for the ultimate in operator convenience and accessibility. Includes storage for 99 databases and on-screen data tracking.
  • A Starview exclusive remote access via standard Ethernet hardwire or optional Wi-Fi router gives management access to real-time process information from the machine.
  • Operates continuously from roll fed films. Automatic film roll lift with powered film unwind for ease of operation.
  • Upper and lower 3-stage infrared radiant heater panels for fast and uniform sheet heating.
  • High pressure hydraulic four-post trim press with standard trim die heater for clean cuts at lower cutting forces.
  • Standard up-stacking or optional down-stacking to conveyor for efficient finished product removal.
  • Automatic scrap winder. Scrap bale can be removed while machine is in operation for uninterrupted production.
  • Industry leading design, construction, features and customer support.
