Starview’s BSC II Series feature a Patent Pending Hot/Cold process for sealing clamshell packages. These fully automated machines are available with ten through twenty-stations and standard sealing areas of 14 x 18 and 18 x 24 inches. Clamshell front and back feeding, insert card feeding and finished package unloading are included.
The BSC II Series machines will seal clamshells formed using PVC, PETG, RPETG and GAG PET films as well as all of the typical blister package styles including face seal, full face, double card trapped, Club style and half-clamshell.
BSC II Details:
Built for your market:
BSC II SERIES
Why a perfect fit?

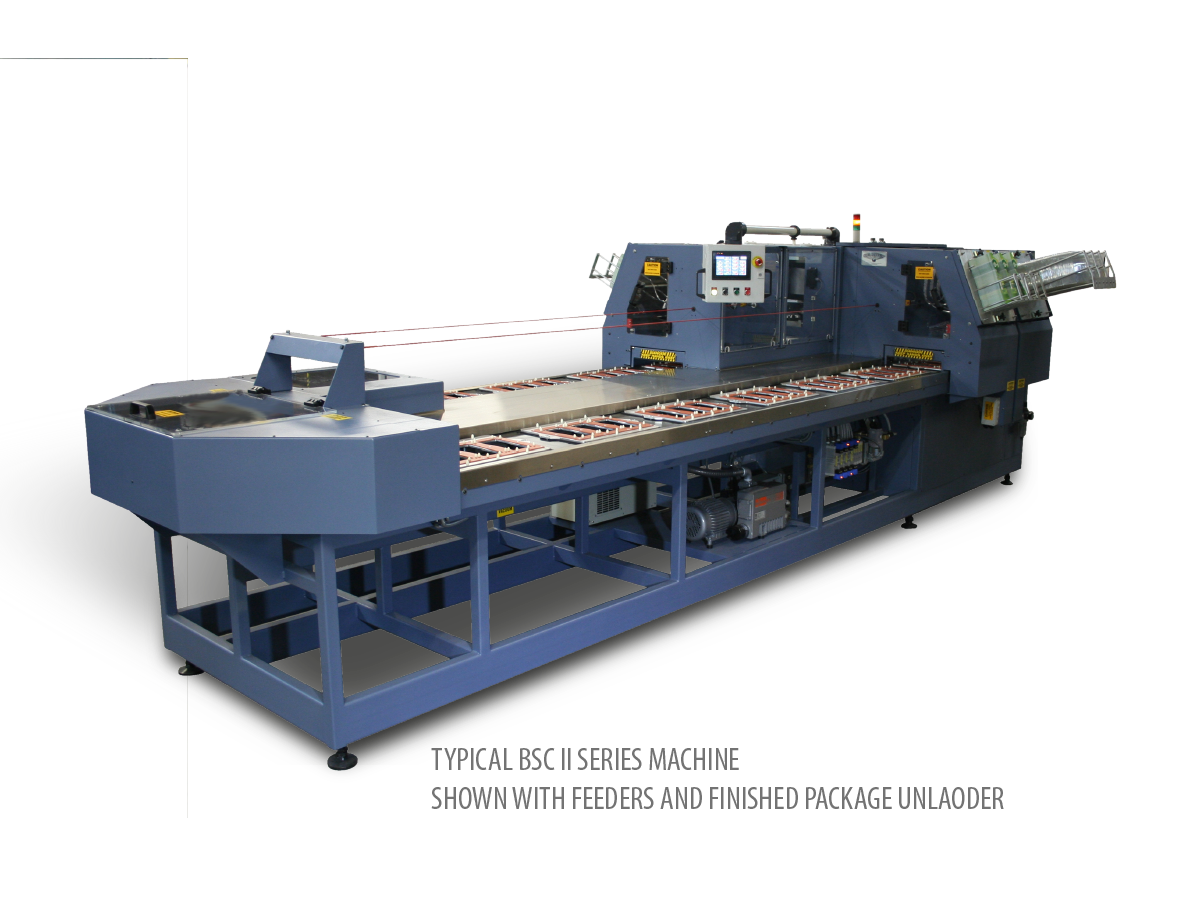

Starview’s BSC II Series carousel type clamshell and blister sealers are designed for high volume production requirements.
Sixteen (16) station machines are standard; however, units can be manufactured with anywhere from ten (10) to twenty (20)
or more stations. Standard sealing areas of 14” x 18” and 18” x 24” are o ered as well as custom sizes. The standard BSC II
Series machines feature one heated sealing station, one cooling station, one bottom blister feed station, one card feed
station, one top blister feed station & one nished package unload station with the remaining positions used for operator
product loading and advanced automation such as printing, vision systems, product detection, etc.
The BSC II Series machines may be used for Plastic-to-Plastic Clamshell sealing as well as conventional carded blisters,trapped blister packages, club style trapped blister packages, full face blisters and half-clamshell styles including certain applications using Tyvek, foils and other heat sealable lidstock.
Color touch screen HMI for the ultimate in operator convenience and accessibility. Includes storage for 99 databases and on-screen data tracking.
Starview’s exclusive hot/cold sealing press system allows plastic to plastic sealing of PVC, RPVC, PETG, RPETG, GAG
PET, GRG PET and similar materials without the use of RF generators.
A Starview exclusive remote access via standard Ethernet hardwire or optional Wi-Fi router gives management access to real-time process information from the machine.
AC Variable frequency precision cam index rotary table drive for smooth table operation and position repeatability.
Uses quick-change cost effective multi-ply hardwood or durable aluminum tooling.
Industry leading design, construction, features and customer support.
