Starview’s PHSA Series machines feature a Patent Pending Hot/Cold process for sealing clamshell packages. Eight station machines with standard sealing areas of 14 x 18 and 18 x 24 inches are offered. Clamshell front and back feeding, insert card feeding and finished package unloading are included.
The PHSA Series machines will seal clamshells formed using PVC, PETG, RPETG and GAG PET films as well as all of the typical blister package styles including face seal, full face, double card trapped, Club style and half-clamshell.
PHSA Details:
Built for your market:
PHSA SERIES
Why a perfect fit?

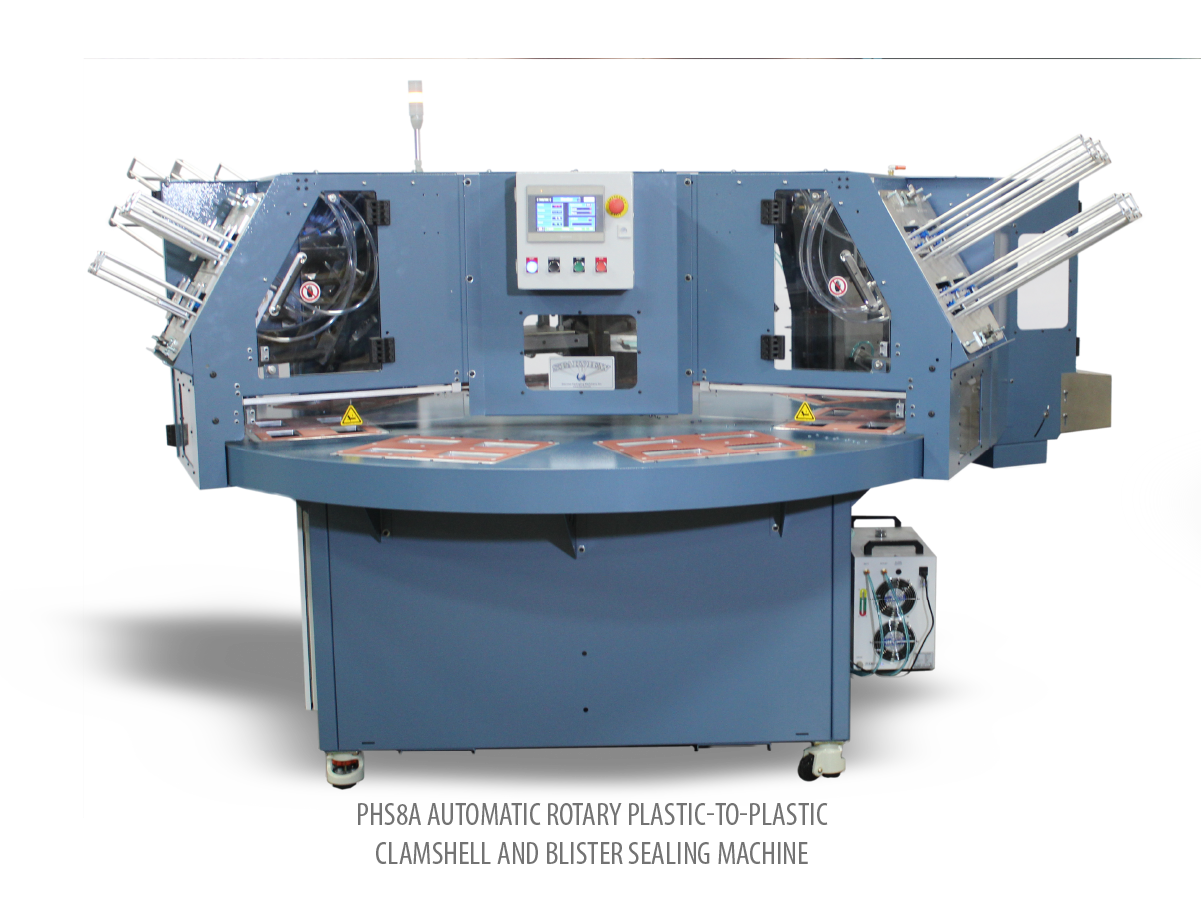

Starview’s PHSA Series rotary type Clamshell and Blister sealers are designed for high volume production
requirements. These machines may be used for Plastic-to-Plastic Clamshell sealing as well as conventional
carded blisters, full face blisters and half-clamshell styles including applications using Tyvek, foils and other heat
sealable lidstock. The PHSA Series units are available in eight (8) station designs with standard sealing areas of
14 x 18 inches and 18 x 24 inches. Larger sealing areas are available on request. The standard machines feature
one heated sealing station and one cooled station, one nished package unload station, one bottom blister feed
station, one insert card feed station and one top blister feed station with the remaining stations used for operator product loading stations.
For machines capable of higher production rates or with additional open stations for value-added automation
please consider Starview’s BSC
II Carousel fully automatic sealers series.
Color touch screen HMI for the ultimate in operator convenience and accessibility. Includes storage for 99 databases and on-screen data tracking.
Starview’s exclusive hot/cold sealing press system allows plastic to plastic sealing of PVC, RPVC, PETG, RPETG, GAG
PET, GRG PET and similar materials without the use of RF generators.
A Starview exclusive remote access via standard Ethernet hardwire or optional Wi-Fi router gives management access to real-time process information from the machine.
AC Variable frequency precision cam index rotary table drive for smooth table operation and position repeatability.
Uses quick-change cost effective multi-ply hardwood or durable aluminum tooling.
Industry leading design, construction, features and customer support.
