SEMI-AUTOMATIC ROTARY

Clamshell & Blister Packaging Machines

PHS SERIES

SEMI-AUTOMATIC ROTARY PLASIC TO PLASTIC Clamshell & Blister Packaging Machines

Starview’s PHS Series machines feature a Patent Pending Hot/Cold process for sealing clamshell packages. Six and eight station machines with standard sealing areas of 14 x 18 and 18 x 24 inches are offered. An optional self-standing card feeder and finished package unloader are available.

The PHS Series machines will seal clamshells formed using PVC, PETG, RPETG and GAG PET films as well as all of the typical blister package styles including face seal, full face, double card trapped, Club style and half-clamshell.

PHS Details:

Built for your market:

PHS SERIES

Why a perfect fit?

Starview’s PHS Series rotary type Clamshell and Blister sealers are designed for medium to higher volume production requirements. These machines may be used for Plastic-to-Plastic Clamshell sealing as well as conventional carded blisters, full face blisters and half-clamshell styles including applications using Tyvek, foils and other heat sealable lidstock. The PHS Series units are available in three (3), six (6) and eight (8) station designs.

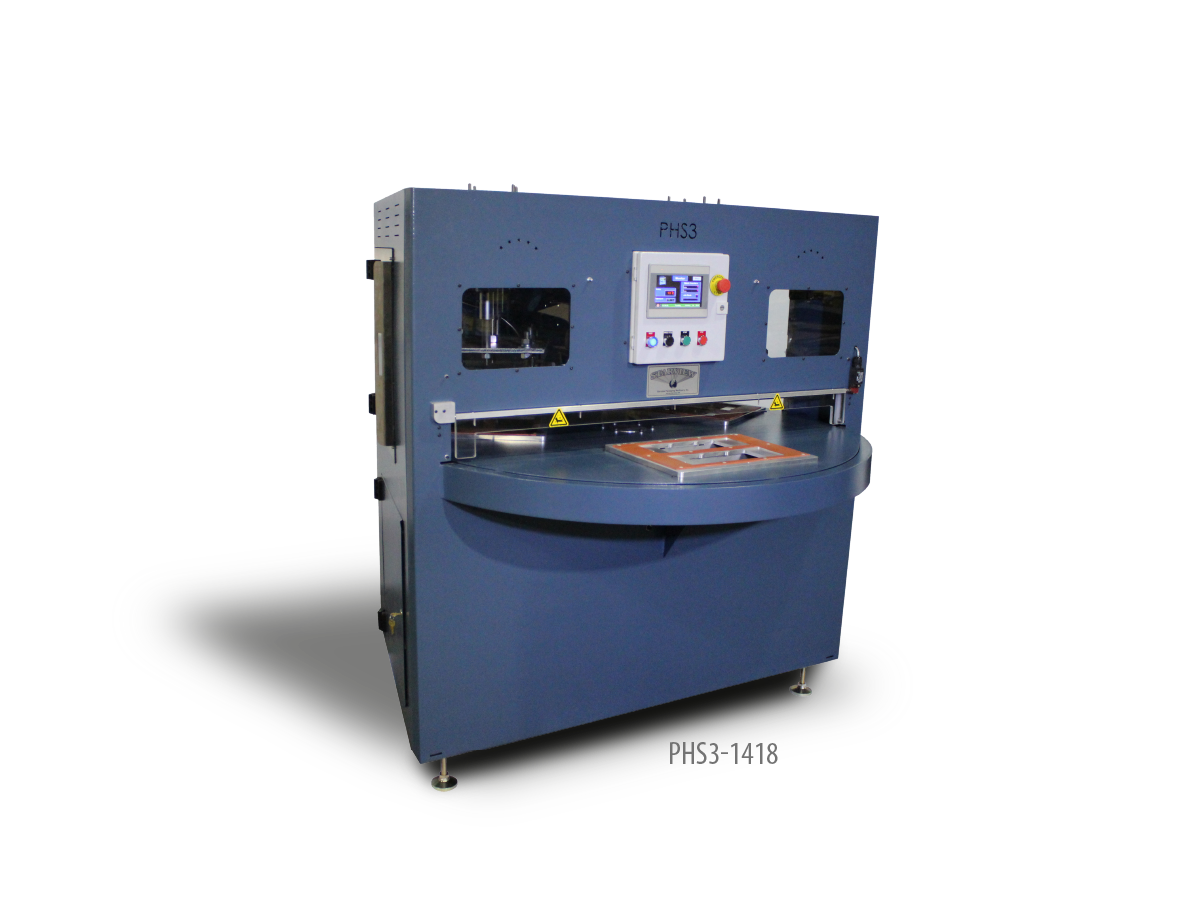

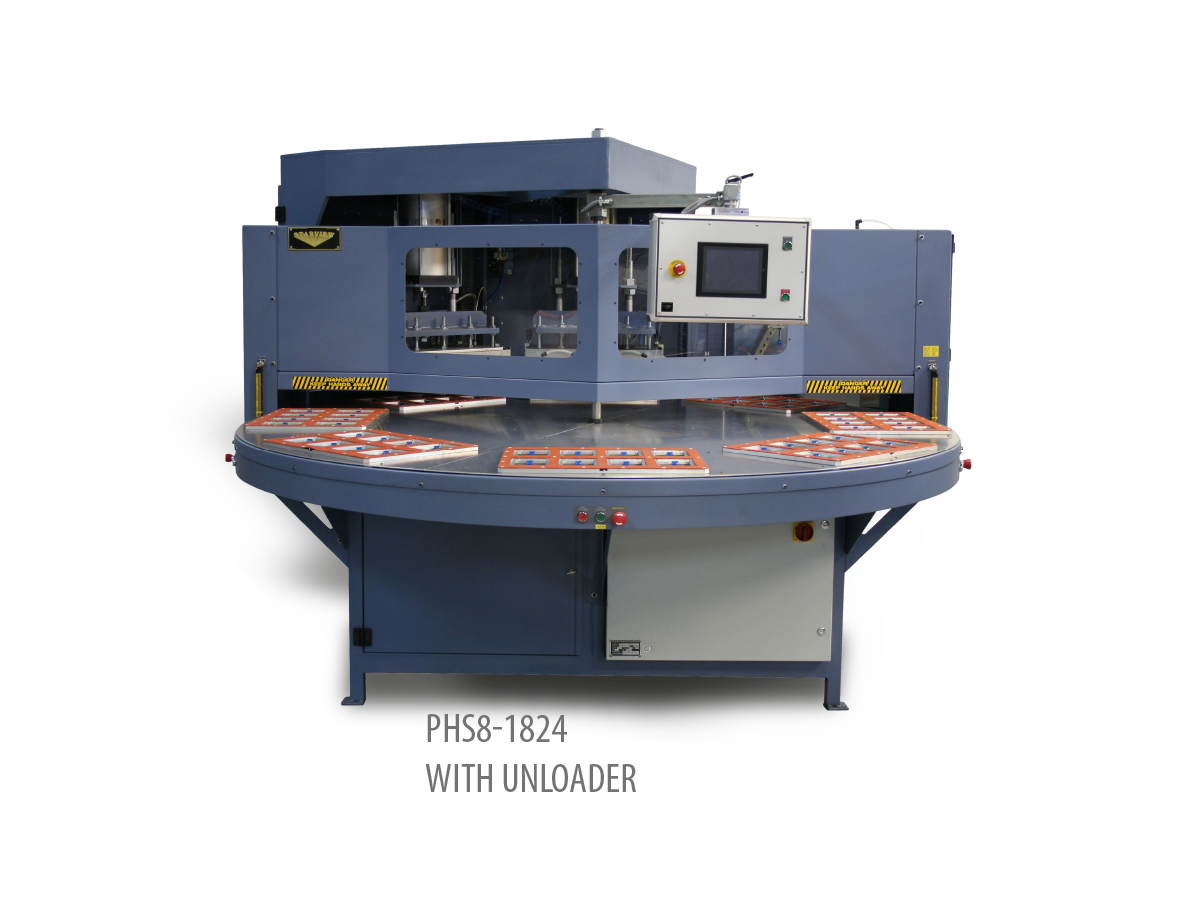

The three-station machines are only available with a 14” x 18” sealing area. Six and Eight station models are available in standard sealing areas of 14 x 18 and 18 x 24 inches. Larger sealing areas are available on request. The standard machines feature one heated sealing station and one cooled station with the remaining stations used for load/unload stations.

For machines capable of higher production rates and value-added automation Starview’s PHSA Rotary and BSC II Carousel fully automatic sealers should be considered.

more information (pdf) series comparison

A wide range of standard and custom automation features available to match customer requirements.
ANSI Class 4 machine safety for operator protection.
Automatic blister feeder, card feeder & finished package unloader provide reduced labor costs.
Color touch screen HMI for the ultimate in operator convenience and accessibility. Includes storage for 99 databases and on-screen data tracking.
Starview’s exclusive hot/cold sealing press system allows plastic to plastic sealing of PVC, RPVC, PETG, RPETG, GAG PET, GRG PET and similar materials without the use of RF generators.
A Starview exclusive remote access via standard Ethernet hardwire or optional Wi-Fi router gives management access to real-time process information from the machine.
AC Variable frequency precision cam index rotary table drive for smooth table operation and position repeatability.
Uses quick-change cost effective multi-ply hardwood or durable aluminum tooling.
Industry leading design, construction, features and customer support.
